CFT-16UF

Multipair Universal Format Cable

Circleflex's 16-pair universal format cable is engineered for large-scale signal distribution, featuring flexible tinned copper conductors, individual pair Al/PET tape shielding, and a rugged fire retardant PVC jacket.

sensors SYSTEM: ACTIVE

Optimized for Digital & Analog Precision

Gauge 0.22 SQMM

O.D. 18 MM

hub

UF Technology

Universal Format construction lets users transition freely between demanding digital signal transmission and quiet analog audio paths using one versatile cable.

Layers

99.9% Pure Tinned Copper

99.9% pure tinned copper ensures zero signal degradation and maximum conductivity over extended distances.

precision_manufacturing

SQMM Standards

Thirty-two conductors precision-gauged to 0.22mm² delivering consistent performance and controlled impedance across all sixteen pairs simultaneously.

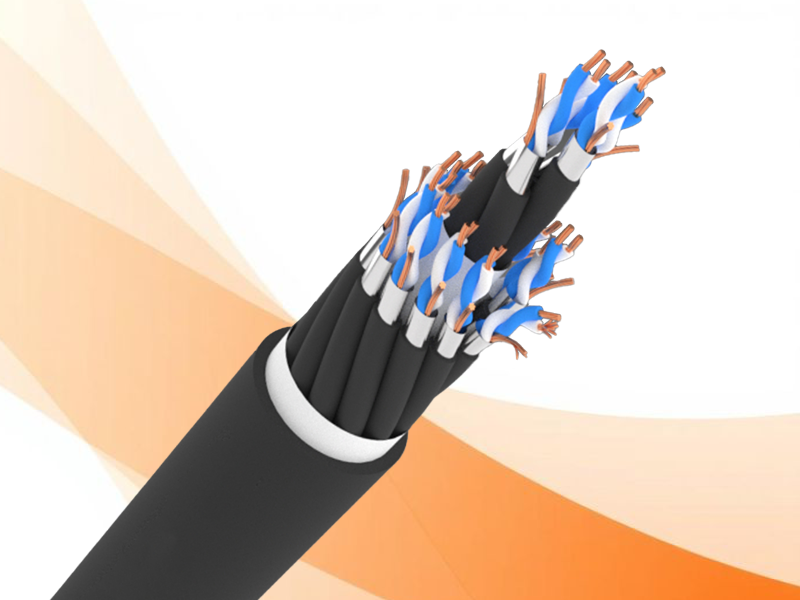

biotech Micro-Stand Details

Advanced tinned copper geometry optimized for AES/EBU and DMX signal stability.

Engineering Specifications

DOC: CFT-16UF-SPEC-2026

GENERAL PERFORMANCE

CABLE O.D. 18

SIGNAL CAPABILITY Analog / Digital / DMX

STANDARD REELS As per requirement

OPERATIONAL TEMP -20°C to +70°C

CONDUCTOR INTEGRITY

MATERIAL Flexible Electrolytic Tinned Copper

AREA STANDARD 0.22 mm²

STRANDING 7 × 0.20 mm

PHYSICAL CONSTRUCTION

SHIELDING AI/PET Tape on Single Pairs

JACKET SPEC Fire Retardant PVC

FINISH Matte Black

MECHANICAL LIMITS

TEMP RANGE -20°C to +70°C

NET WEIGHT 40.00 kg/ 100m

Engineered for Perfection

The CFT-16UF is specified for large-format, high-density signal runs. Get in touch with our project team to scope your full installation.
