Technical Engineering Series

CFT-08C40

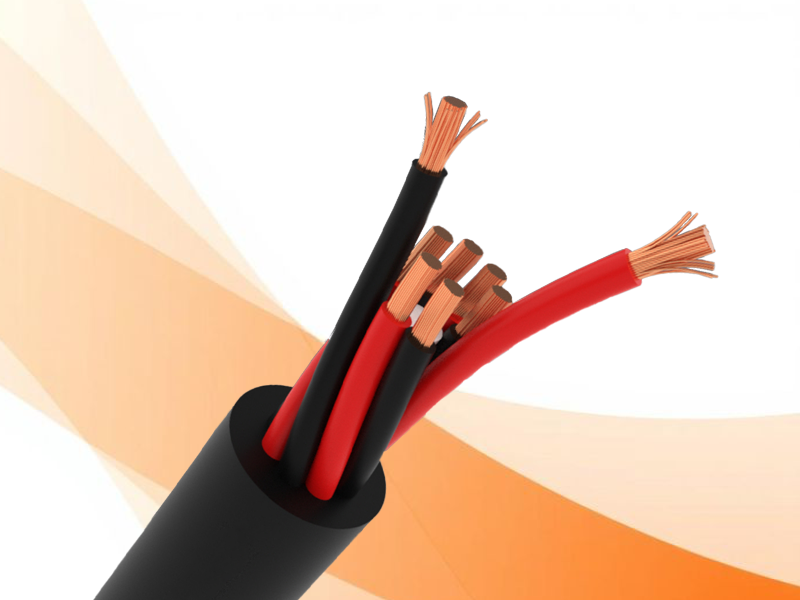

8 Core 4 mm²speaker cable

Designed for high-power multi-channel applications, this 8-core 4mm² cable combines flexible bare copper conductors with a heavy-duty PVC TM2 jacket, offering robust performance in the most demanding live and installed environments.

sensors SYSTEM: ACTIVE

Optimized for Digital & Analog Precision

Stat 1 Label 4 SQMM

O.D. 19.5 MM

hub

Professional Speaker Cable

Multiple strand conductors across eight high-power cores combine extreme flexibility with an IEC-compliant fire-rated PVC TM2 jacket, engineered for versatile and durable professional audio distribution.

Layers

99.9% Pure Copper

99.9% pure copper ensures zero signal degradation and maximum conductivity over extended distances.

precision_manufacturing

SQMM Standards

Eight 4mm² flexible bare copper conductors with 128 strands delivering maximum current capacity for high-power multi-channel speaker systems.

Engineering Specifications

DOC: CFT-08C40-SPEC-2026

GENERAL PERFORMANCE

CABLE O.D. 19.5

SIGNAL CAPABILITY Speaker Audio

STANDARD REELS As per requirement

OPERATIONAL TEMP -20°C to +70°C

CONDUCTOR INTEGRITY

MATERIAL Flexible Electrolytic Bare Copper

AREA STANDARD 4 mm²

STRANDING 128 x 0.20 mm

PHYSICAL CONSTRUCTION

SHIELDING Bare Copper Braid

JACKET SPEC Fire Retardant PVC

FINISH Matte Black

MECHANICAL LIMITS

TEMP RANGE -20°C to +70°C

Engineered for Perfection

The CFT-08C40 is specified for high-power multi-zone speaker systems. Engage our engineering team to optimise load distribution across zones.

Download Catalog Contact Sales
