Technical Engineering Series

CFT-04UF

Multipair Universal Format Cable

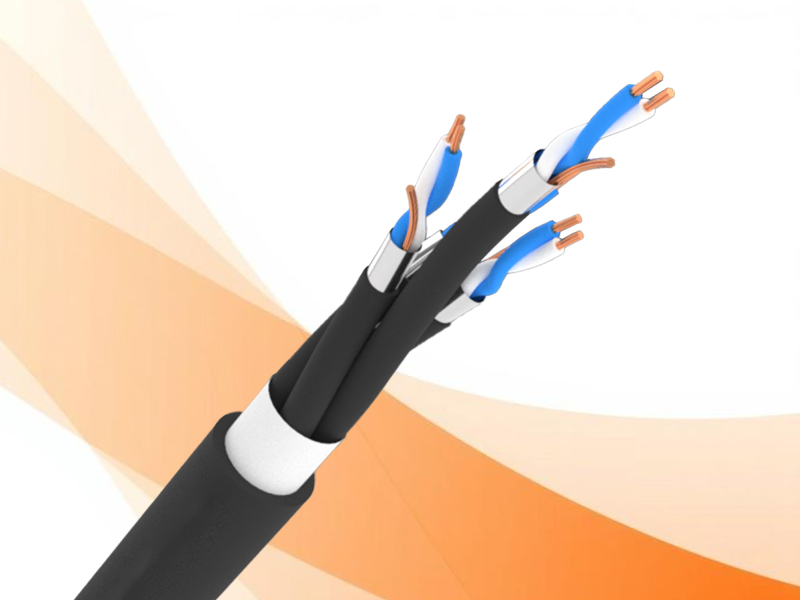

A robust 4-pair universal format cable featuring flexible tinned copper conductors, Al/PET tape shielding on individual pairs, and a fire retardant PVC jacket — engineered for demanding multi-channel signal routing.

sensors SYSTEM: ACTIVE

Optimized for Digital & Analog Precision

Gauge 0.22 SQMM

O.D. 10 MM

hub

UF Technology

Universal Format core architecture enables effortless switching between high-impedance digital signals and low-noise analog paths within a single cable design.

Layers

99.9% Pure Tinned Copper

99.9% pure tinned copper ensures zero signal degradation and maximum conductivity over extended distances.

precision_manufacturing

SQMM Standards

Multiple conductors precision-gauged to 0.22mm² maintaining strict impedance requirements across all four pairs for professional signal transmission.

Engineering Specifications

DOC: CFT-04UF-SPEC-2026

GENERAL PERFORMANCE

CABLE O.D. 10

SIGNAL CAPABILITY Analog / Digital / DMX

STANDARD REELS As per requirement

OPERATIONAL TEMP -20°C to +70°C

CONDUCTOR INTEGRITY

MATERIAL Flexible Electrolytic Tinned Copper

AREA STANDARD 0.22 mm²

STRANDING 7 × 0.20 mm

PHYSICAL CONSTRUCTION

SHIELDING AI/PET Tape on Single Pairs

JACKET SPEC Fire Retardant PVC

FINISH Matte Black

MECHANICAL LIMITS

TEMP RANGE -20°C to +70°C

Engineered for Perfection

The Circleflex CFT-04UF is specified for compact, multi-signal routing applications. Reach out to our technical advisors to assess your signal layout.
